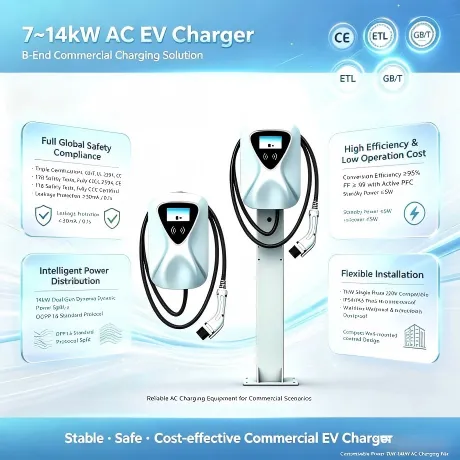

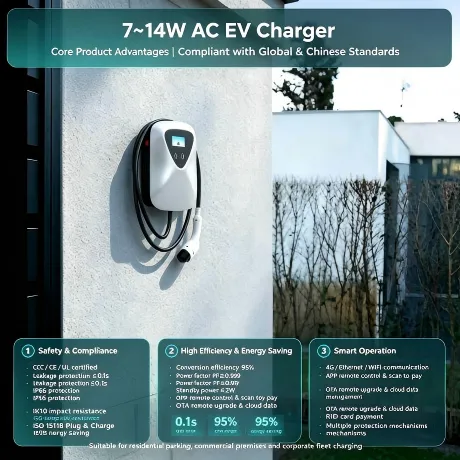

7~14KW Model M

Modern AC charger with sleek design, LED status indicators, and over-current protection. Supports 7–14kW charging power, ensuring reliable and efficient charging for all EV models.

Highlights of Home AC Charger 7~14KW Model M

Modern and stylish visual design
Clear LED status indication lights
Comprehensive over-current safety protection
Stable performance across all EV models
Low standby energy consumption
Excellent value for everyday charging

Specification of Home AC Charger 7~14KW Model M

S. NO. Parameters			Requirements
General Requirements
1 Charger Capacity			7KW
2 Model No.			ZCO-ACM-7KW-1
Input Requirements
3 AC Supply System			Single-Phase, 3 Wire AC system
4 Nominal Input voltage			AC220V±15%
5 Input frequency			50/60Hz
Environmental Requirements
6 Ambient Temperature Range			-25 to 55 ° C
7 Ambient Humidity			5 to 95%
8 Storage temperature			-40 to 70 ° C
Mechanical Requirements
9 IP Ratings			IP 55
10 Cooling			Natural Cooling
Output Requirements
11 Number of outputs			1
12 Type of each output			AC220V±15%
13 Output Current			Max.32 Amp
14 Output Connector Compatibility			IEC 62196 2017, IEC 61851 2017, etc.
15 Connector Mounting			Indoor use
User Interface & Display Requirements
16 Emergency stop switch			Support
17 Display			4.3inch touch screen
18 User Authentication			APP
19 Metering Information			Consumption Units
Communication Requirements
20 Metering			Grid responsive metering as per units’ consumption of each vehicle
21 Interface between charger and CMS			Ethernet/4G/WIFI
Protection & Safety Requirements
22 Safety Parameters			Over Current, Over Voltage, Under Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc.
