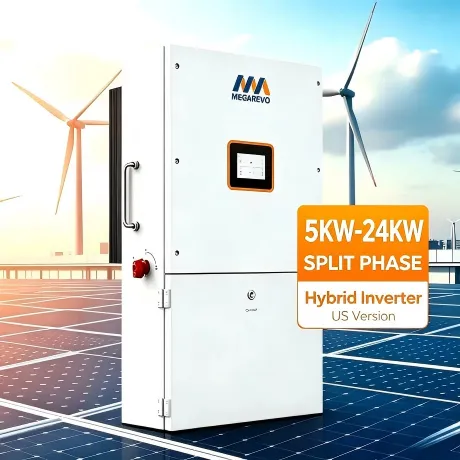

Inverter 5kW-24kW (Split-Phase)

Versatile split-phase inverter designed for North American residential and light commercial applications. Covers 5–24kW output with balanced 120/240V dual-voltage supply.

Highlights of Inverter 5kW-24kW (Split-Phase)

Compatible with split-phase grid architecture
Flexible power output from 5kW to 24kW
Dual-voltage balanced power supply
Suitable for residential and light commercial use
Smart grid-adaptive control
High performance with stable output

Specification of Inverter 5kW-24kW (Split-Phase)

model	R5KLLA	R6KLLA	R7K6LLA	R8KLLA	R10KLLA
Photovoltaic Input Parameters
Maximum Photovoltaic Input Power (kW)	7.5	9	12	12	15
MPPT quantity	4
MPPT Voltage Range (V)	120~500
Maximum Photovoltaic Input Voltage (V)	500
Full-load operating voltage range (V)	120~430
Maximum input current per MPPT channel (A)	14
Maximum short-circuit current (A) per MPPT circuit	22
Battery Input Parameters
Rated Battery Voltage (Vdc)	48
Maximum charge/discharge current (A)	120 / 120	135 / 135	190 / 190	190 / 190	190 / 210
Battery Voltage Range (V)	40~60
Recommended Battery Voltage Range (V)	40~58
Battery Type	Lithium battery / Lead-acid battery
Battery Charging Strategy	Self-adaption BMS
Exchange Output Parameters (Grid Connection)
Rated grid output power (KVA)	5	6	7.6	8	10
Maximum apparent power output to the grid (KVA)	5.5	6.6	8.4	8.8	11
Output Voltage Range (V)	110–120/220–240 V split-phase, 1Ø,230 single-phase
Output Frequency (Hz)	50 / 60(45 ~ 54.9 / 55 ~ 65)
Rated AC current output to the grid (A)	20.8	25	31.7	33.3	41.7
Maximum AC output current to the grid (A)	22.9	27.5	35	36.7	45.8
Power factor	0.8 ahead ~ 0.8 behind
THDi	<2%
Maximum Grid Bypass Current (A)	100
Exchange Output Parameters (Backup Power)
Rated Power Output (KVA)	5	6	7.6	8	10
Maximum Apparent Power Output (KVA)	5.5	6.6	8.4	8.8	11
Rated output voltage (L-N/L1-L2) (V)	120 / 240
Rated Output Frequency (Hz)	60
THDu	<2%
protect
Supported Protection	Ground detection, arc fault protection, islanding protection, insulation impedance detection, residual current monitoring unit, output overcurrent protection, standby output short-circuit protection, output overvoltage protection, output undervoltage protection
Certification and Standards
Attestation	IEC62109-1/-2; IEC61000-6-1/-3; IEC62477-1
Default Parameters
CEC productiveness	97.3%	97.2%	97.2%	97.3%	97.2%
Maximum Battery Load Efficiency	≥97.2%
Levels of protection	IP65 / Type 3R
Working Temperature Range (°C)	–25 to +60 (power rating reduced by more than 45%)
Cooling-down method	Air blast cooling
Relative humidity	0-95%
Working Altitude (m)	0 ~4,000 (power reduction>2,000)
Weight（Kg）	48
Noise（dB）	<48
Standby power consumption (W)	<25
Display and Communication
Display screen	LCD touch screen
Communication with BMS/Meter/EMS	RS485, CAN
Supported Communication Interfaces	RS485, WLAN, 4G (optional)
