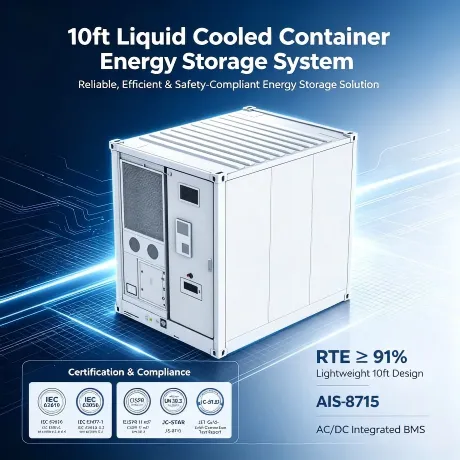

Container Energy Storage System 10ft, 2.5MWh AC Side

Highlights of Container Energy Storage System 10ft, 2.5MWh AC Side

• Larger capacity meets heavy industrial power demands

• AC coupling conveniently connects to on-site power grid

• Integrated layout shortens field installation duration

• Whole-container thermal control stabilizes cell status

• Standard container convenient for transportation relocation

• Intelligent EMS optimizes whole-system energy scheduling

Specification of Container Energy Storage System 10ft, 2.5MWh AC Side

C2.5S-2508-625-4 Hours Liquid-cooled energy storage system

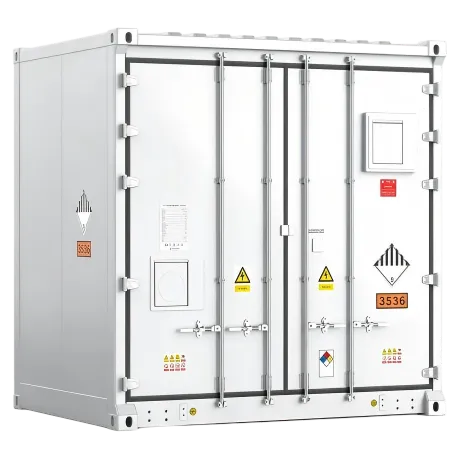

*  This illustration is for reference only; the actual product appearance may vary depending on configuration.
Optimal Cost l With a 10-foot design and a weight of less than 20 tons,        it is easy to transport and deploy in confined spaces. l Integrated    AC/DC    bidirectional    inverter    to    reduce        debugging time			Ultimate Security   l Multi-level  electrical  protection,  fire  protection,  arc              flash analysis, and coordinated protection mechanisms    l   Smart battery health management provides early warnings for faulty batteries.    l  Complies with the IEEE 693 standard for high seismic resistance ratings
Capacity Enhancement  l  Modular design reduces the impact of failures and            improves system uptime.  l  Active balancing technology and bionic solutions can            extend  battery  life  and  enhance  system  discharge            capacity.				Convenient operation and maintenance l  Active  balancing  technology  can  reduce  the  operation  and           maintenance costs of energy storage power stations. l  Fast state detection and fault recording technologies enable           rapid localization and analysis of system faults.
Model		C2.5 S-2508-625-4 hours
DC Side Parameters
Cell type		LFP 3.2 V/314 Ah
Battery Configuration		6P416S
Nominal Energy		2,508 kilowatt-hours
Battery Voltage Range		1123.2–1497.6 V
Nominal battery voltage		1331.2 V
Across-Current Side Parameters
Nominal power		625 kVA
Maximum current THD		<3% (at rated power)
DC component		< 0.5%
Nominal voltage		690 V
Ac Voltage Range		621–759 V
Nominal frequency		50 Hz/60 Hz
Rated current		418.4 A × 3-phase (can operate continuously at 110% of the rated current)
Power factor		≥ 0.99 (at rated power)
Power Factor Range		-1 to +1
System parameter
Work environment temperature range		-30°C to +50°C (performance degradation at>45°C)
Relative humidity		≤ 100% relative humidity (non-condensing)
Maximum workingheight		2000 m
Levels of protection		IP55
Cooling means		Intelligent Liquid Cooling
Noise		≤ 75 decibels (@1 meter, ambient temperature 35°C)
Weight		≤ 23,000 kilograms
Corrosion resistance level		C4 C5 (Optional)
Earthquake magnitude		IEEE 693 High Earthquake Resistance Certification
Snow load		30 pounds per square foot
Wind load		129 miles per hour
Size (Width × Depth × Height)		2991 mm × 2438 mm × 2896 mm
Fire extinguisher system		Fire  control  alarm  panel,  smoke  and  heat  detectors,  alarm  bells,  flashing  alarms,  gas  detectors,  ventilation systems  compliant  with  NFPA  69  standards,  main  ducts  equipped  with  sprinkler  systems,  aerosol  detection devices
CI		Ethernet
Communicating protocol		Modbus-TCP 、IEC 104 、IEC 61850
Standard Compliance		IEC  62933-5-2 、IEC  61000 ，、IEC  62619 ，、IEC  63056 ，、IEC  62477-1 、JETGR0004- 1-2.1 、JETGR0005-1-1.0 、  JEM_1505 、JEAC9701-2024
