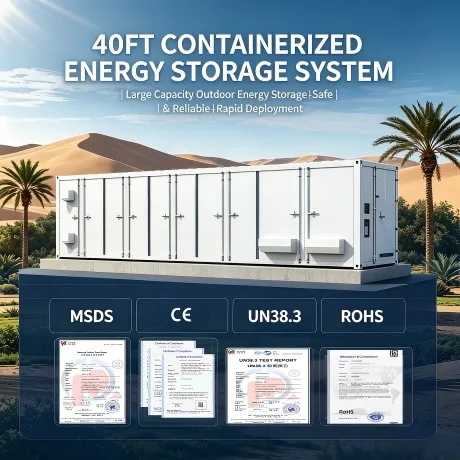

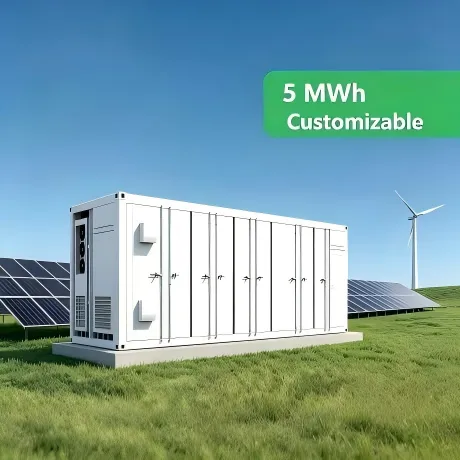

Large 40-foot container with 5MWh capacity
High energy density for utility-scale use
Modular architecture for system expansion
Robust thermal and safety management
Seamless integration with existing infrastructure
Cost-effective per-kilowatt-hour storage solution
| Container Energy Storage System | |
| Model: 5 MWh (0.5C) | |
| Rated capacity: 3.2V 314Ah battery cell / 51.2V 314Ah battery pack | |
| AC three-phase four-wire system | |
| Battery Module | Rated voltage (V): 51.2 |
| Voltage range (V): 46.4–5 6.8 | |
| Communication protocol: CAN/RS485 | |
| Standard Energy (AH) 314 | |
| Working temperature: 0–50°C | |
| Storage temperature: -20°C to 60°C | |
| Battery Cluster | Rated voltage (V): 768 |
| Voltage range (V): 696~852 | |
| Communication protocol: CAN/RS485 | |
| Standard Capacity (AH) 314 | |
| Working temperature: 0–50°C | |
| Storage temperature: -20°C to 60°C | |
| Grid-connected | Rated voltage (V): 400 |
| operation | Allowable voltage range (V): 380 ± 15% |
| Frequency range (Hz): 50–60 | |
| Power factor ≥0.99 (absolute value) | |
| Noise (Db) <70 | |
| IP rating: IP54 | |
| Internal Communication Ethernet | |
| Monitoring system; Fire extinguisher/lighting system/Air conditioning | |
| Size (mm): 12192*2438*2591 (L*W*H); 40GP | |
| Weight (T) ~50 | |
| Cooling method:Air Cooling | |
| Certifications: CE/MSDS/UN38.3/UL/IEC62619 | |
