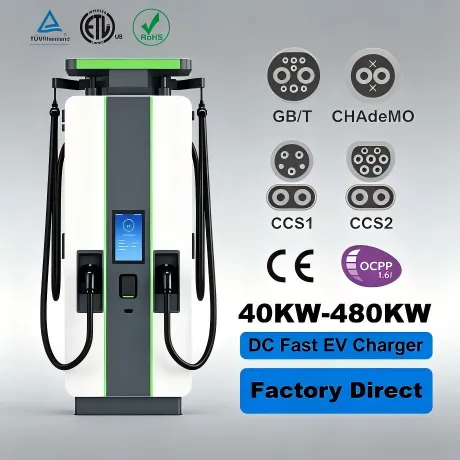

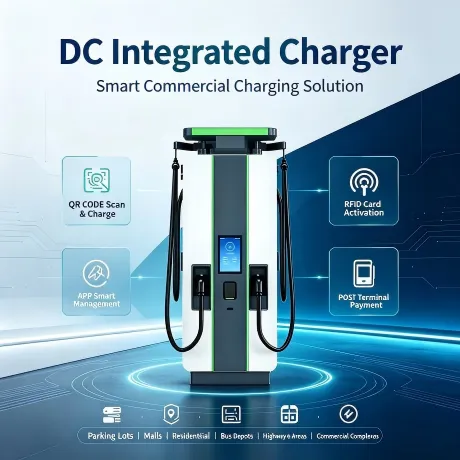

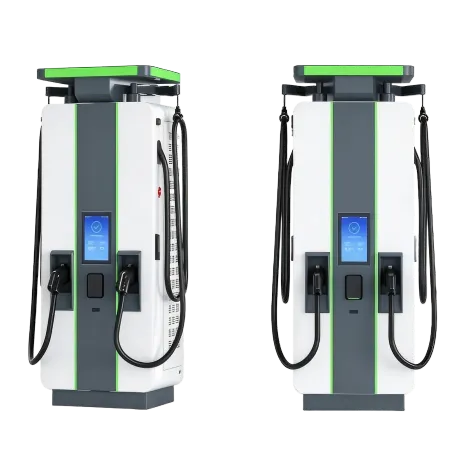

DC Integrated Charging Station-60-480KW Model A

Compact and efficient DC fast charger for commercial fleets and highways. Delivers 60–480kW output with intelligent power distribution and reliable 24/7 operation.

Highlights of DC Integrated Charging Station-60-480KW Model A

High power output up to 480kW
Compact footprint saves installation space
Intelligent power distribution management
Reliable 24/7 continuous operation
Wide voltage range for diverse EV models
User-friendly touchscreen interface

Specification of DC Integrated Charging Station-60-480KW Model A

Electrical specifications
Rated Input		380Vac±15%, 50/60Hz, L1+L2+L3+N+PE
Rated Input current		93A~738A
Output Interface		CCS1+CCS1/CCS2+CCS2/GB/T+GB/T/CHAdeMO+CHAdeMO
Output Power		60KW/80KW/120KW/160KW/200KW/240KW/300KW/360KW/400KW/480kW max.
Output Current		0-700A
Output Voltage		200-1000Vdc
Power Factor		≥0.99 (50% load above)
Efficiency		95% @Nominal Output Power
Human-Machine Interface
Display		12.1-inch touch screen
Operating System		Android
Language		English (customizable and switchable language)
Emergency Stop Button		Support
User Authentication		RFID Card, APP, Password, Credit Card (Optional)
RFID Reader		ISO/IEC 14443-A, Mifare one(M1)
POS		PAX IM30 (Optional)
Communication
Network Interface		Ethernet, 3G/4G, WiFi
EVSE & Backend protocol		OCPP 1.6J/OCPP 2.0.1(Optional)
EVSE&EV Protocol		DIN 70121, ISO 15118
Machine parameters
Number of Outputs		2
Charging cable length		5m
IP Rating		IP54
Cooling		Forced Air Cooling
Case material		Galvanized Steel
Dimensions (HxWxD)		60KW:2000mm450mm720mm
		80KW:2000mm450mm720mm
		120KW:2000mm600mm750mm
		160KW:2000mm600mm750mm
		200KW:2050mm830mm830mm
		240KW:2050mm830mm830mm
		300KW:2050mm830mm830mm
		360KW:2050mm830mm830mm
		400KW:2050mm830mm830mm
		480KW:2050mm830mm830mm
Installation		Ground Mounting
Safety Protection		Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short
		Circuit, Over Temperature, etc.
Environmental Parameters
Operating Temperature		-25℃to 55℃
Storage Temperature		-40℃to 70℃
Humidity		5% to 95% Without Condensation
Operating Altitude		≤2000m
Certification and Standards
Certification		CE, RED, CB, TUV Mark
