Space-saving wall design
20–40kW high power
Rapid EV charging speed
Intelligent management system
Stable safe operation
Wide scene compatibility

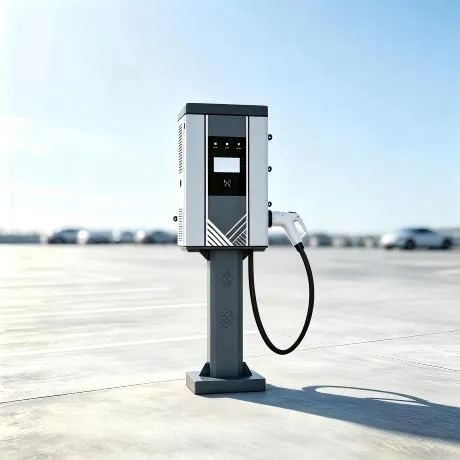

| Product Name | DC wall-mounted charging station-Model A | ||
| Model | DC-20kW | DC-30kW | DC-40kW |
| Rated Power | 20kW | 30kW | 40kW |
| Mounting Method | Floor-Standing | ||
| Cable Entry Method | Bottom Cable Entry / Exit | ||
| Unit Size | 410*223*695mm | 590*223*730mm | |
| Input Voltage | GB/T(380VAC) CCS1(480VAC) CCS2 CHAdeMO(400VAC) | ||
| Input Frequency | GB/T CCS2(50Hz) CCS1 CHAdeMO(60Hz) | ||
| Output Voltage | DC200-1000V | ||
| Output Current | 0-80A | ||
| Charging Cable Length | 5 meters | ||
| Accuracy | Level 2.0 | ||
| Efficiency | ≥95% | ||
| HMI | 7-inch Color Touchscreen, LED Indicators | ||
| Charging Mode | Auto-Stop on Full Charge / Fixed Power / Fixed Energy / Timed Charging | ||
| Charging Method | RFID Card / QR Code Scanning | ||
| Network Connection Method | Ethernet/4G | ||
| Applicable Standards | IEC 61851-1:2017;IEC 62196-2:2016 | ||
| Operating Environment | Altitude ≤2000m; Temperature: -20℃ to +50℃ | ||
| IP rating | Ip54 | ||

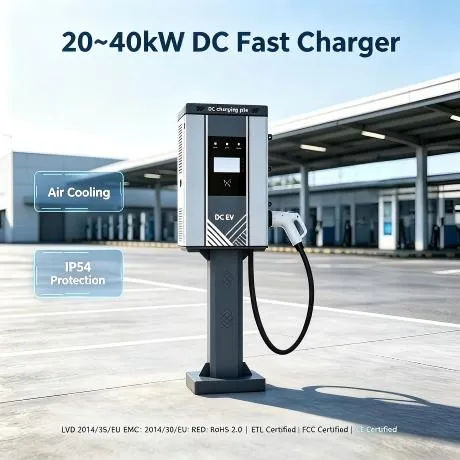

| Noise Level | Forced Air Cooling | ||
| MTBF | 17520Hours | ||
| Communication Protocol | 0CPP1.6J | ||
