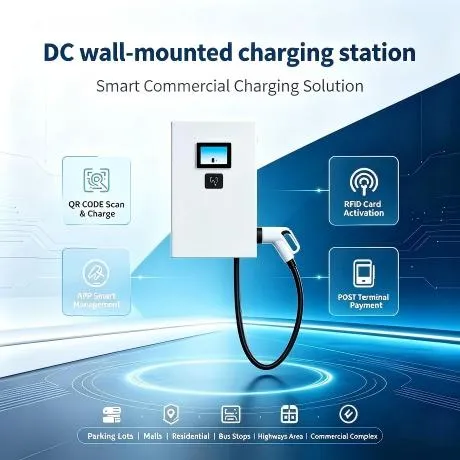

DC Wall-mounted Charging Station 20-40KW Model B

20-40kW wall DC chargers feature compact wall design, high power output and smart management for multi-scenario EV fast charging.

Highlights of DC Wall-mounted Charging Station 20-40KW Model B

Easy wall mounting
Adjustable power range
Low space occupation
Full safety protection
Remote monitoring support
All vehicle models compatible

Specifications of DC Wall-mounted Charging Station 20-40KW Model B

20kW-40KW DC Charger--Model B
Main Features
	High efficiency, reliable and stable performance Supports OCPP 1.6J/2.0.1 protocols (optional) Supports Ethernet, 4G, WiFi (optional)
	Equipped with a cable management system Supports OTA updates
Main Specifications
Electrical specifications
Model No.		ENC-DCB020A	ENC-DCB030A	ENC-DCB040A
Rated Input		380Vac±15%, 50/60Hz, L1+L2+L3+N+PE
Rated Input current		32A	48A	64A
Output Interface		CCS2
Output Power		20kW max.	30kW max.	40kW max.
Output Current		66A max./connector	100A max./connector	132A max./connector
Output Voltage		200-1000Vdc
Power Factor		≥0.99 (50% load above)
Efficiency		95% @Nominal Output Power
Human-Machine Interface
Display		7-inch touch screen
Operating System		Android
Language		English (customizable and switchable language)
Emergency Stop Button		Support
User Authentication		RFID Card, APP, Password (Optional)
RFID Reader		ISO/IEC 14443-A, Mifare one(M1)
Communication
Network Interface		Ethernet, 3G/4G, WiFi (Optional)
EVSE & Backend protocol		OCPP 1.6J/OCPP 2.0.1(Optional)
EVSE&EV Protocol		DIN 70121, ISO 15118
Machine parameters
Number of Outputs		1
Charging cable length		5m
IP Rating		IP54
Cooling		Forced Air Cooling
Case material		Galvanized Steel
Dimensions (LxWxH)		651mm440mm268mm
Installation		Wall mounting
Safety Protection		Over Current, Over Voltage, Under Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc.
Environmental Parameters
Operating Temperature		-25℃to 55℃
Storage Temperature		-40℃to 70℃
Humidity		5% to 95% Without Condensation
Operating Altitude		≤2000m
Certification and Standards
Certification		CE, RED, CB, TUV Mark
Standards and compliance		EN IEC 61851-1, EN 61851-23, EN 61851-24, EN IEC 61851-21-2,EN IEC 61000-6
