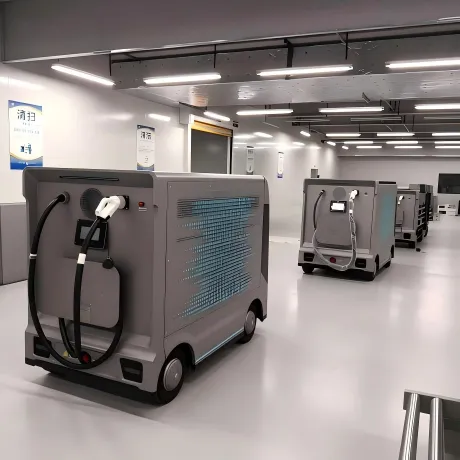

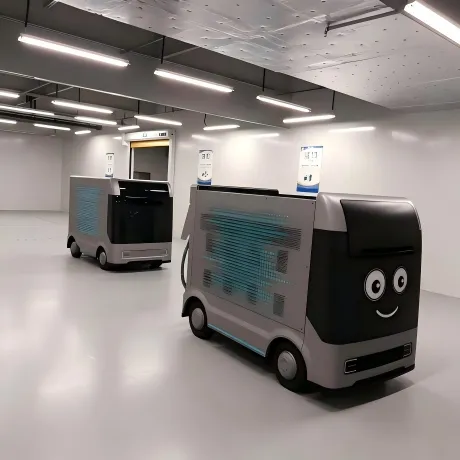

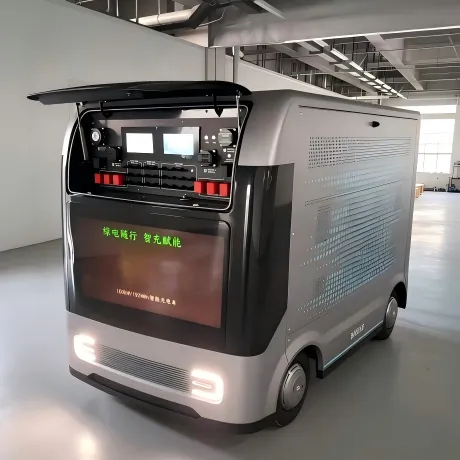

Self-contained mobile storage unit
261kWh high-capacity battery
Provides emergency and off-grid power
Rapid deployment to remote locations
Ideal for disaster relief and construction sites
Dual function as storage and mobile charging
| Basic Parameters | |
| Item Name | Specification Parameter |
| Chassis Ground Clearance (mm) | 150 |
| Dimensions (L*W*H) (mm) | 2150*1200*1650 |
| Weight (kg) | 2350 |
| Cooling Method | Forced Air Cooling |
| Communication Interface | Internal Interfaces: RS485 Bus, RS232 Bus, CAN Bus |
| Rated Power (kw) | 100 |
| BMS Auxiliary Power Supply Voltage | 12v dc |
| DC Charging Gun Output Channel 1 | |
| Battery Capacity (Kwh) | 192 |
| Energy Storage Cell Cycle Life | >8000 cycles |
| Technical Parameters | |
| Item Name | Specification Parameter |
| Model | HT-BMS-192KWh |
| Charging Gun | DC Fast Charging Single Gun 300A 1000V |
| Display Mode | 7-inch Display Screen |
| Charging Method | APP Scan Code Charging, Password Charging |
| Charging Mode | Time Mode, Power Mode, Amount Mode, Auto Full Charge, Power Mode |
| Input Characteristics | |
| Item Name | Specification Parameter |
| Energy Replenishment Method | Charging Method 1: DC Fast Charging via Charging Pile (Max:100kw) |
| Charging Method 2: AC380V (Max:100kw) | |
| Charging Method 3: 380V Special Slow Charging Gun Input (Max:35KW*3) or L12@L3 220V Input (Max:7KW*3) | |
| Charging Method 4: Photovoltaic PV400V~750V (Max:40KW) | |
| DC Input Current | ≤160A |
| AC Input Frequency | 50HZ |
| Maximum Efficiency of Charging Pile | 94.50% |
