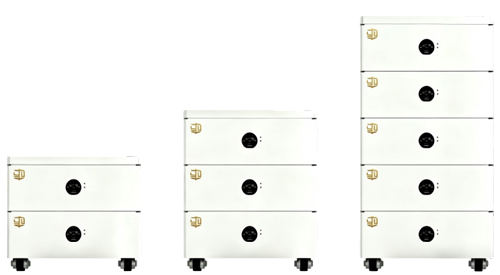

Stacked Li-ion Battery Module

Highlights of Stacked Li-ion Battery Module

• Layer stacking freely expands usable capacity

• Neat arrangement reduces indoor occupation

• Compatible with mainstream home PV systems

• Precise BMS prolongs overall service lifespan

• Independent unit for convenient single replacement

• Adaptable to gradual household load upgrade

Specification of Stacked Li-ion Battery Module

Stacked Lithium Battery Module
product model	51.2V200AH	51.2V300AH	51.2V400AH	51.2V500AH	51.2V600AH
Battery Characteristics
Nominal Energy (WH)	10240	15360	20480	25600	30720
nominal voltage （V）	51.2	51.2	51.2	51.2	51.2
capacity （AH）	100	300	400	500	600
effective energy （WH）	9216	13824	18432	23040	27648
Battery Assembly	100-16S*2P	200-16S*3P	100-16S*4P	100-16S*5P	100-16S*6P
cycle life	≥4000@25℃
Charging/Discharging Rate	0.5C
cooling-down method	forced air cooling
communication mode	RS485/CAN/Bluetooth (optional)
designed life	Over 10 years
Electrical design redundancy	＞20%
Charging and Discharging Standards
discharge voltage （V）	45.6
charging voltage （V）	56.8
Recommended charge/discharge current (A)	100	150	200	250	300
Maximum charge/discharge current (A)	200 (3 seconds)	300（3 seconds）	400（3 seconds）	500（3 seconds）	600（3 seconds）
operation requirement
working temperature （℃）	0-40℃
storage temperature （℃）	-20-70℃
humidity	15%-80%
system parameter
Size (Width * Depth * Height) mm	525*510*415	525*510*615	525*510*815	525*510*1015	525*510*1215
weight （Kg）	113.4	170.1	226.8	283.5	340.2
Certificate CE/UN38.3/MSDS/IEC                                     Certificate CE/UN38.3/MSDS/IEC
