C&I Storage 100/112kWh (Air-Cooled) Hybrid

Compact hybrid air-cooled storage system available in 100/112kWh configurations. Integrates solar and grid input, ideal for small businesses seeking flexible and cost-effective energy solutions.

Highlights of C&I Storage 100/112kWh (Air-Cooled) Hybrid

Dual 100/112kWh capacity options
Hybrid integration with solar and grid
Ideal for small business applications
Flexible and scalable modular design
Optimizes self-consumption of solar energy
Low upfront investment with fast payback

Specification of C&I Storage 100/112kWh (Air-Cooled) Hybrid

DC Battery Parameters	Model	ZCI10050HY (Hybrid Inverter)
	Rated Battery Capacity	100kWh
	Rated Battery Voltage	358.4V
	Battery Operating Voltage Range	324.8V ~ 397.6V
	Battery Cell Type	LFP Lithium Iron Phosphate
	Cell Capacity	280Ah / 314Ah
	Cycle Life	≥6,000 cycles (0.5C, 5%-95% DOD; 0.8C, 80% DOD)
	Standard Charge & Discharge Rate	0.5C
	Battery Pack Series & Parallel Config	1P112S
	Module Cooling Type	Forced Air Cooling
PCS AC Conversion Parameters	Rated AC Output Power	50kW
	Maximum Output Power	55kW
	Max Output Current	200A
	Rated AC Voltage	400V
	AC Voltage Fluctuation Range	±15%
	Rated AC Frequency	50Hz / 60Hz
	Wiring Standard	3P+N+PE
	Current Total Harmonic Distortion THDI	Below3PercentUnderRatedPower
	Power Factor Range	0.99 lag ~ 0.99 lead
	Voltage Total Harmonic Distortion THDU	Below3PercentLinearLoad
	PCS Cooling Method	Forced Air Cooling
	Peak Conversion Efficiency	98.50%
PV Input Parameters	Recommended Max PV Array Capacity	100kW
	PV Maximum Open Circuit Voltage	1000V
	PV Rated Operating Voltage	600V
	MPPT Tracking Voltage Window	150V ~ 850V
General System Specifications	Round-trip Energy Efficiency	≥90%
	Enclosure Protection Grade	IP54
	Corrosion Resistance Grade	C3 standard, C4/C5 optional
	Fire Suppression Solution	Aerosol / Perfluorohexanone (optional)
	Isolation Mode	Non-isolated; isolated transformer optional
	Working Relative Humidity	0% ~ 95%, non-condensing
	Operating Ambient Temperature	-30℃ to 55℃, power limit activated over 45℃
	Maximum Applicable Altitude	≤3000m, power derating above 2000m
	BMS Communication Interface	CAN
	EMS Communication Interface	4G / CAN / RS485

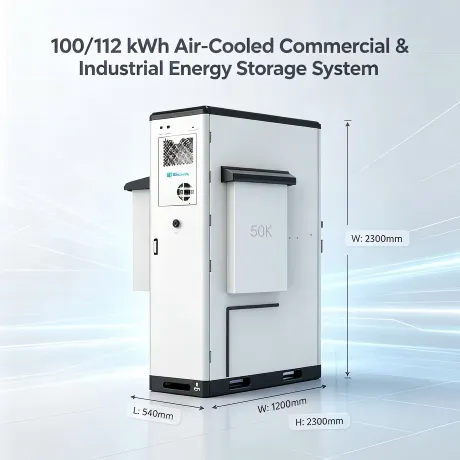

	Overall Dimension (W × D × H)	540 × 1200 × 2300 mm
	Total Net Weight	2.6 Ton
	Annual Capacity Decay Rate	Below3PercentPerYear
	Official Warranty Period	5years
Supplementary Note	Cabinet Integration	All-in-one design integrates battery, BMS, PCS, DC-DC and STS; supports grid-connected & off-grid microgrid operation
