Premium liquid-cooled thermal regulation
Available in 241kWh and 261kWh capacities
Longer battery cycle life and durability
Superior heat dissipation for high loads
Ideal for large industrial facilities
High-performance energy management system
| I. Core Product Information | Product Model | ZC26125-LQ |
| Product Series | ZCI Series Liquid-Cooled Industrial & Commercial Energy Storage System | |

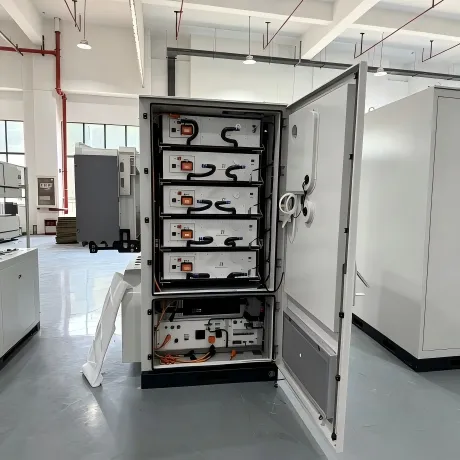

| Product Form | Outdoor Integrated Floor-Mounted Energy Storage Cabinet | |
| Core Positioning | Plug-and-play grid-connected energy storage solution for industrial and commercial scenarios, integrating battery, BMS, PCS, EMS, liquid-cooled thermal management system and fire protection system into a single unit | |
| II. DC Battery Core Parameters | Battery Rated Energy | 261kWh |
| Battery Rated Voltage | 832V | |
| Battery Operating Voltage Range | 762~923V | |
| Battery Type | LFP (Lithium Iron Phosphate) Battery | |
| Battery Energy Efficiency | 94% | |
| Battery Cycle Life | ≥6000 cycles (0.5C charge/discharge, 95% DOD, 80% SOH) | |
| Standard Charge/Discharge Rate | 0.5C | |
| Battery Series-Parallel Configuration | 1P208S | |
| Battery Module Cooling Method | Liquid Cooling | |
| III. AC Electrical Performance Parameters | Rated AC Output Power | 125kW |
| Maximum AC Output Power | 138kW | |
| Maximum AC Output Current | 200A | |
| Rated AC Voltage | 400V | |
| AC Voltage Adaptation Range | ±15% | |
| Rated AC Frequency | 50/60Hz | |
| Wiring Method | 3P+N+PE Three-Phase Five-Wire System | |
| Current Total Harmonic Distortion (THDi) | ≤3% (at rated power) | |
| Power Factor | ≥0.99 (leading -1~lagging -1) | |
| Voltage Total Harmonic Distortion (THDu) | ≤5% (at rated load) | |
| PCS Converter Cooling Method | Forced Air Cooling | |
| Peak Conversion Efficiency | 98.50% | |
| IV. Overall System Performance Parameters | Overall System Energy Efficiency | ≥90% |
| Annual Capacity Decay Rate | ≤3% | |
| BMS Battery Management System Communication | CAN Bus | |
| EMS Energy Management System Communication | 4G/Ethernet/WiFi | |
| V. Environmental & Protection Specifications | Whole Unit Protection Level | IP54 Dustproof & Waterproof |
| Corrosion Resistance Rating | C3 Outdoor Industrial Grade Anti-Corrosion | |
| Fire Protection Method | Aerosol/Perfluorohexanone Fire Extinguishing System (Optional) | |
| Operating Ambient Temperature | -30℃~55℃ (below 2000m altitude) | |
| Operating Relative Humidity | 0-95% Non-Condensing | |
| Maximum Adaptable Altitude | ≤3000m (derating required for altitude above 2000m) | |
| VI. Mechanical & Installation Parameters | Cabinet Overall Dimensions (L×W×H) | 1350×1350×2300mm |
| Cabinet Net Weight | 3400kg | |
| Installation Method | Cabinet Floor-Mounted Fixed Installation | |
| VII. Certification & Warranty Service | Design Service Life | Over 10 years |
| Standard Whole Unit Warranty | 5 years | |
| Grid Adaptability | Compliant with grid connection certification standards of multiple countries, compatible with mainstream global power grid environments, supporting overseas project deployment | |
| Customization Support | Support modular layout, capacity & power customization, multi-unit parallel networking, adapting to various industrial and commercial energy storage scenarios |
