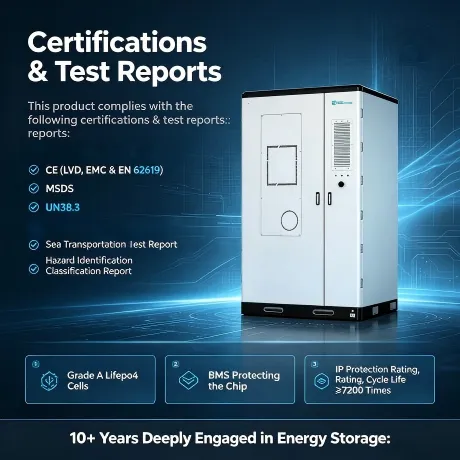

C&I Storage 241kWh (Air-Cooled)

Robust air-cooled commercial and industrial storage system with 241kWh capacity. Offers reliable energy management, peak shaving, and backup power for mid-sized business facilities.

Highlights of C&I Storage 241kWh (Air-Cooled)

241kWh capacity for mid-sized businesses
Efficient air-cooling thermal management
Peak shaving reduces demand charges
Reliable backup power during outages
Cost-effective commercial energy storage
Easy installation and quick deployment

Specification of C&I Storage 241kWh (Air-Cooled)

Basic Product Information	Model	ZCI314100A-O
	Product Type	Outdoor Integrated Air-Cooled Industrial & Commercial Energy Storage System
	Core Integration	Integrated with Battery, BMS, PCS and EMS in one cabinet
Battery System Parameters	Battery Type	LFP (Lithium Iron Phosphate)
	Battery Rated Capacity	314 Ah
	Battery Rated Energy	241 kWh
	Battery Rated Voltage	768 V
	Battery Voltage Range	696 V ~ 852 V
	Battery Pack Connection	1P204S
	Standard Charge/Discharge Rate	0.5 C
	Cycle Life	≥6000 cycles (0.5C, 50%-95% DOD, 80% SOH)
	Battery Cooling Method	Forced Air Cooling
Electrical & PCS System Parameters	Rated AC Power	100 kW
	Maximum AC Power	110 kW
	Maximum AC Current	160 A
	Rated AC Voltage	400 V
	AC Voltage Range	±15% of rated voltage
	Rated AC Frequency	50/60 Hz
	Wiring Method	3P+N+PE
	Power Factor	≥0.99 (0.9~1 adjustable)
	Current THDi (at rated power)	<3%
	Voltage THDu (at linear load)	<3%
	PCS Peak Efficiency	98.50%
	PCS Cooling Method	Forced Air Cooling
	BMS Communication	CAN
	BMS External Port	4G / CAN / RS485
System Overall Performance Parameters	System Energy Cycle Efficiency	≥90%
	Design Service Life	10 years
	Age-related Decay Rate	<3%
Environment & Protection Parameters	Protection Level	IP54
	Corrosion Resistance Rating	C3 (C4/C5 optional)
	Fire Extinguishing & Protection	Aerosol / Powder Extinguishing (optional)
	Partition Method	Non-isolated type (with optional transformer)
	Relative Humidity	0~95% (non-condensing)
	Ambient Temperature	-30℃ ~ +55℃ (derating above 45℃)
	Maximum Altitude	≤3000m (derating above 2000m)
Mechanical & Dimension Parameters	Overall Dimensions	1950mm (W) × 1350mm (D) × 2400mm (H)
Mechanical & Dimension Parameters	Overall Weight	2.6 T
Warranty & Certification Parameters	Standard Warranty	5 years
Warranty & Certification Parameters	Grid Compatibility	Supports multi-country grid-connected certification standards
