Lightweight Photovoltaic Module

Lightweight PV panels substitute traditional construction materials to generate clean power for rooftop and building envelope applications.

Highlights of Bifacial N Type Mono-Crystalline

Low weight reduces building load bearing pressure
Dual function as roofing and power generator
Easy cutting to match irregular building outlines
High flexibility fits curved architectural surfaces
Simplified mounting cuts construction expenses
Good weather resistance for long outdoor service

Specification of Bifacial N Type Mono-Crystalline

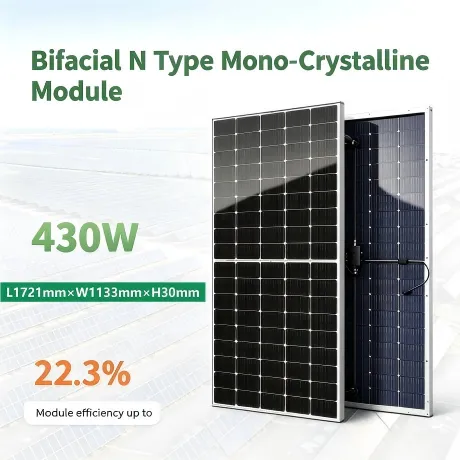

Bifacial N Type Mono-Crystalline 430W

Spec/Model	Unit	QS415-108M12D	QS420-108M12D	QS425-108M12D	QS430-108M12D	QS435-108M12D
Max-Power(Pm)	W	415	420	425	430	435
Power Tolerance	W	0~+5
Max-Power Voltage(Vm)	V	31.5	31.65	31.8	31.95	32.1
Max-Power Current(Im)	A	13.19	13.29	13.38	13.48	13.57
Open-Circuit Voltage(Voc)	V	38	38.15	38.3	38.45	38.6
Short-Circuit Current(Isc)	A	13.92	14.01	14.1	14.19	14.28
Module Eﬃciency(ηm)	%	21.2	21.5	21.8	22	22.3
STC: AM=1.5，Irradiation 1000W/m², Module Temperature 25℃
Electrical Characteristics at Nominal Module Operating Temperature（NMOT）
Spec/Model	Unit	QS415-108M12D	QS420-108M12D	QS425-108M12D	QS430-108M12D	QS435-108M12D
Max-Power(Pm)	W	312	316	320	324	328
Max-Power Voltage(Vm)	V	29.6	29.75	29.9	30.05	30.2
Max-Power Current(Im)	A	10.55	10.64	10.72	10.8	10.88
Open-Circuit Voltage(Voc)	V	36.1	36.25	36.4	36.55	36.7
Short-Circuit Current(Isc)	A	11.24	11.31	11.38	11.45	11.52
NMOT: Irradiation 800W/m², Ambient temperature 20℃, Wind Speed 1m/s
Temperature Coeﬃcient			Package
Nominal Module Operating Temperature	42±2℃		Transportation	Container Size	Quantity(pcs)	Quantity(per pallet)
Temperature coeﬃcient of Pmax	-0.29%/℃		Container	40’HQ	936	36
Temperature coeﬃcient of Voc	-0.25%/℃		Platform Trailer	13m	1008	36
Temperature coeﬃcient of Isc	0.04%/℃		Platform Trailer	17.5m	1800	36
Mechanical Characteristics			I-V Curve
Dimension(L×W×H) 1721mm×1133mm×30mm			I-V Curves of 420W at diﬀerent irradiance		-V Curves of 420W at diﬀerent cell temperature
Weight	23.2kg
Front Glass Type	High transmittance anti-reﬂective coated semi tempered glass /2.0mm
Back Glass Type	Glazed semi tempered glass/2.0mm
Solar Cell	108(6x18)/NType Mono/182*91mm/ φ247mm
Encapsulant	EVA
Frame	Anodized Aluminum Alloy / Silver

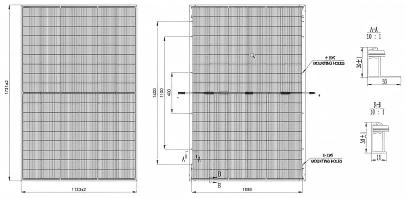

Junction Box	IP68		Module Size
Cable	4mm2；300mm or Customized Length
Connector	MC4 Compatible
Operating Conditions
Parameter	Value
Max System Voltage	DC1500V (TUV)
Max Fuse Rated Current	25A
Operating Temperature Range	-40°C ~ +85°C
Mechanical Load	5400Pa (front) / 2400Pa (rear)
Max Allowable Hail Load	φ25mm hail from 1m of distance at 23m/s
Application Class	Class A
Bifaciality coefficient	80±5%
Qsolar reserves the sole right of interpretation.

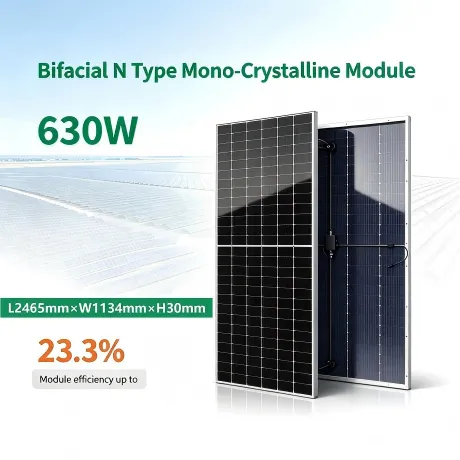

Bifacial N Type Mono-Crystalline 630W

Spec/Model	Unit	QS630-120TM12D	QS635-120TM12D	QS640-120TM12D	QS645-120TM12D	QS650-120TM12D
Max-Power(Pm)	W	630	635	640	645	650
Power Tolerance	W
Max-PowerVoltage(Vm)	V	46.01	46.08	46.16	46.27	46.32
Max-Power Current(Im)	A	13.69	13.78	13.86	13.94	14.03
Open-Circuit Voltage(Voc)	V	56.01	56.09	56.18	56.28	56.36
Short-Circuit Current(Isc)	A	14.37	14.45	14.54	14.63	14.71
Module Efficiency(nm)	%	22.5	22.7	22.9	23.1	23.3
STC:AM=1.5,Irradiation 1000W/m²,Module Temperature 25℃
Electrical Characteristics at Nominal Module Operating Temperature(NMOT)
Spec/Model	Unit	QS630-120TM12D	QS635-120TM12D	QS640-120TM12D	QS645-120TM12D	QS650-120TM12D
Max-Power(Pm)	W	480	484	488	492	496
Max-Power Voltage(Vm)	V	43.36	43.43	43.52	43.59	43.66
Max-PowerCurrent(lm)	A	11.08	11.15	11.22	11.29	11.36
Open-Circuit Voltage(Voc)	V	52.39	52.47	52.55	52.63	53.01
Short-Circuit Current(Isc)	A	11.82	11.89	11.96	12.03	12.1
NMOT:Irradiation 800W/m²,Ambient temperature 20℃,Wind Speed 1m/s
Temperature Coefficient			Package
Nominal Module Operating Temperature	43 ± 2°C		Transportation Type	Container Size	Quantity (pcs)	Quantity (per pallet)
Temperature coefficient of Pmax	-0.29%/°C		Container	40' HQ	576	36
Temperature coefficient of Voc	-0.25%/°C		Platform Trailer	13m	720	36
Temperature coefficient of Isc	0.045%/°C		Platform Trailer	17.5m	936	36
Mechanical Characteristics			I-V Curve
Dimension(L×W×H)	2465mm×1134mm×30mm		I-VCurves of 630W at different irradiance		I-VCurves of 630W at different cell temperature
Weight	34.6kg
Glass Type
Solar Cell	156(6x26)/N Type Mono/182*91mm/φ247mm
Encapsulant	POB/EVA
Frame	Anodized Aluminum Alloy / Silver
Junction Box	IP68

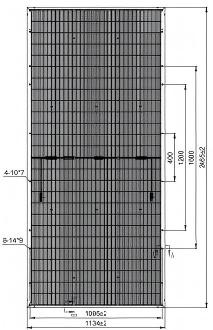

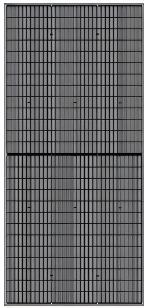

Cable	4mm²; 300mm or CustomizedLength		Module Size
Connector	MC4 Compatible
Operating Conditions
Max System Voltage	DC1500V (TUV)
Max Fuse Rated Current	30A
Operating Temperature Range	-40℃ ~ +85℃
Mechanical Load	5400Pa (front) / 2400Pa (rear)
Max Allowable Hail Load	Φ25mm hail, from 1m of distance at 23m/s
Application Class	Class A
Qsolarreserves the sole right ofinterpretation.

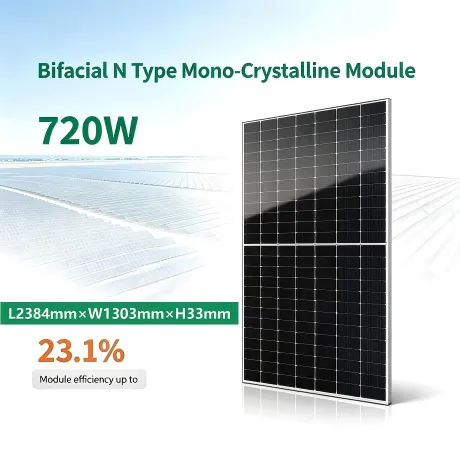

Bifacial N Type Mono-Crystalline 720W

Spec/Model	Unit	QS700-132TM12D	QS705-132TM12D	QS710-132TM12D	QS715-132TM12D	QS720-132TM12D
Max-Power(Pm)	W	700	705	710	715	720
Power Tolerance	W
Max-PowerVoltage(Vm)	V	40.59	40.74	40.89	41.04	41.19
Max-Power Current(Im)	A	17.25	17.31	17.37	17.43	17.48
Open-Circuit Voltage(Voc)	V	48.37	48.52	48.67	48.82	48.97
Short-Circuit Current(Isc)	A	18.09	18.16	18.24	18.31	18.38
Module Efficiency(nm)	%	22.53	22.7	22.86	23.02	23.1
STC:AM=1.5,Irradiation 1000W/m²,Module Temperature 25℃
Electrical Characteristics at Nominal Module Operating Temperature(NMOT)
Spec/Model	Unit	QS700-132TM12D	QS705-132TM12D	QS710-132TM12D	QS715-132TM12D	QS720-132TM12D
Max-Power(Pm)	W	525	528.75	532.5	536.25	540
Max-Power Voltage(Vm)	V	38.97	39.11	39.25	39.4	39.54
Max-PowerCurrent(lm)	A	13.46	13.5	13.55	13.6	13.63
Open-Circuit Voltage(Voc)	V	46.44	46.58	46.72	46.87	47.01
Short-Circuit Current(Isc)	A	14.65	14.71	14.77	14.83	14.89
Temperature Coefficient			Package
Nominal Module Operating Temperature	45 ± 2°C		Transportation Type	Container Size	Quantity (pcs)	Quantity (per pallet)
Temperature coefficient of Pmax	-0.32%/°C		Container	40' HQ	594	33
Temperature coefficient of Voc	-0.25%/°C		Platform Trailer	13m	660	33
Temperature coefficient of Isc	0.045%/°C		Platform Trailer	17.5m	759	33
Mechanical Characteristics			I-V Curve
Dimension (L × W × H)	2384mm × 1303mm × 33mm		I-VCurves of 720W at different irradiance		I-VCurves of 720W at different cell temperature
Weight	38.3kg
Glass Type	High Transmittance Anti-reflective Coated Tempered Glass / 2.0mm
Solar Cell	132 / N Type Mono
Encapsulant	POE/EVA
Frame	Anodized Aluminum Alloy / Silver
Junction Box	IP68

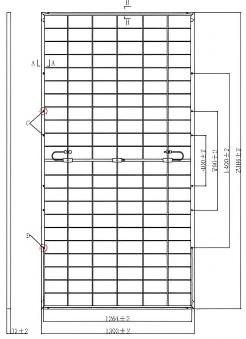

Cable	4mm² : 300mm or Customized Length		Module Size
Connector	MC4 Compatible
Operating Conditions
Max System Voltage	DC1500V (TUV)
Max Fuse Rated Current	35A
Operating Temperature Range	-40℃~+85℃
Mechanical Load	5400Pa (front) / 2400Pa (rear)
Max Allowable Hail Load	φ25mm hail,from 1m of distance at 23m/s
Application Class	Class A
Qsolarreserves the sole right ofinterpretation.
