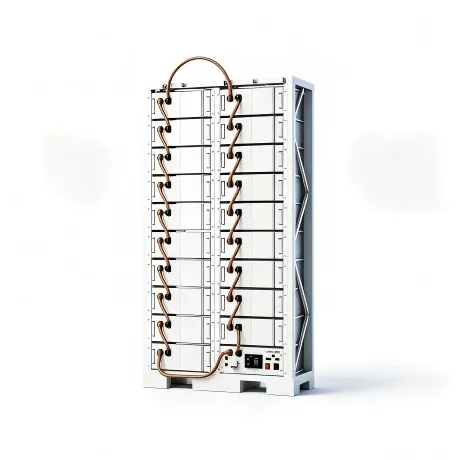

High-Voltage Battery Module (400V) Air-Cooled

Reliable 400V air-cooled battery module with efficient passive thermal management. Delivers stable energy output, ideal for standard EV platforms and stationary storage applications.

Highlights of High-Voltage Battery Module (400V) Air-Cooled

Efficient passive air-cooling design
Stable 400V nominal voltage output
Long cycle life for stationary storage
Robust safety protection mechanisms
Easy integration with standard EV platforms
Low maintenance and operating costs

Specification of High-Voltage Battery Module (400V) Air-Cooled

parameter
model	LFP48100	LFP51100	LFP25200
Standard Energy (Wh)	4800	5120	5120
nominal voltage （V）	48	51.2	25.6
effective energy （WH）	4320	4608	4608
Charging/Discharging Voltage (V)	42.75-53.25	45.6-56.8	22.8-28.4
Charging/Discharging Current (A)	50	50	100
power dissipation （W）	≤10	≤10	≤10
check	System voltage, Battery voltage, Battery temperature, System current, Battery level	System voltage, Battery voltage, Battery temperature, System current, Battery level	System voltage, Battery voltage, Battery temperature, System current, Battery level
cooling-down method	forced air cooling	forced air cooling	forced air cooling
designed life	>10 years	>10 years	>10 years
cycle life	≥4000@25℃	≥4000@25℃	≥4000@25℃
communication mode	RS485/CAN	RS485/CAN	RS485/CAN
working temperature	0-40℃	0-40℃	0-40℃
storage temperature	-20-70℃	-20-70℃	-20-70℃
humidity	15%-80%	15%-80%	15%-80%
size （mm）	480430178	480430178	480430178
weight （Kg）	46.3	48.8	48.8

*Please note that product dimensions and specifications may vary; refer to the latest physical product for exact details. Compatible with brands including Deye, Atess, Megarevo, Sinexcel, Solux, Growatt, etc.
