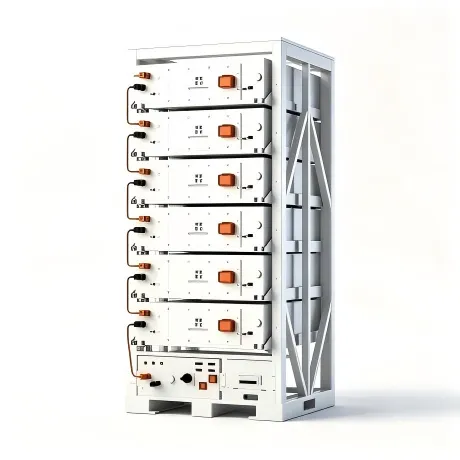

Flexible voltage configuration for multiple platforms
Compatible with both 800V and 1200V systems
Scalable modular architecture
Air-cooled with optimized airflow channels
High power density for heavy-duty use
Cost-effective thermal management solution
| parameter | ||
| model | LFP153280 | LFP163314 |
| Standard Energy (Wh) | 43008 | 52250 |
| nominal voltage （V） | 153.6 | 166.4 |
| effective energy （WH） | 38707.2 | 47025 |
| Charging/Discharging Voltage (V) | 136.8-170.4 | 136.8-170.4 |
| Charging/Discharging Current (A) | 140 | 157 |
| power dissipation （W） | ≤10 | ≤10 |
| check | System voltage, Battery voltage, Battery temperature, System current, Battery level | System voltage, Battery voltage, Battery temperature, System current, Battery level |
| cooling-down method | liqukd cooling | liqukd cooling |
| designed life | >10 years | >10 years |
| cycle life | ≥6000@25℃ | ≥6000@25℃ |
| communication mode | RS485/CAN | RS485/CAN |
| working temperature | 0-40℃ | 0-40℃ |
| storage temperature | -20-70℃ | -20-70℃ |
| humidity | 15%-80% | 15%-80% |
| size （mm） | 810*1070*250 | 810*1190*250 |
| weight （Kg） | 320 | 340 |
| *Please note that product dimensions and specifications may vary; refer to the latest physical product for exact details. Compatible with brands including Deye, Atess, Megarevo, Sinexcel, Solux, Growatt, etc. | ||
