Rack-Mounted Li-ion Battery Module

Highlights of Rack-Mounted Li-ion Battery Module

• Efficiently store surplus residential photovoltaic power

• Rack layout enables flexible capacity expansion

• Smooth power supply during unexpected blackouts

• Optimize electricity use with off-peak charging logic

• Built-in BMS safeguards overall battery safety

• Compact design saves indoor placement space

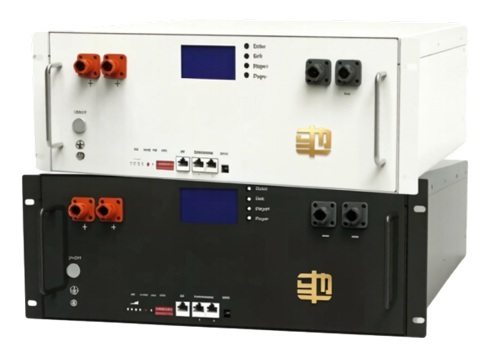

Specification of Rack-Mounted Li-ion Battery Module

Rack-mounted lithium battery module
product model	48V100AH	48V200AH	48V280AH	48V314AH
Battery Characteristics
Nominal Energy (WH)	4800	9600	13440	15072
nominal voltage （V）	48	48	48	48
capacity （AH）	100	200	280	314
effective energy （WH）	4320	8460	12096	13564.8
Battery Assembly	100-15S	200-15S	280-15S	314-15S
cycle life	≥4000@25℃		≥6000@25℃
Charging/Discharging Rate	0.5C
cooling-down method	forced air cooling
communication mode	RS485/CAN/Bluetooth (optional)
designed life	Over 10 years
Electrical design redundancy	＞20%
Charging and Discharging Standards
discharge voltage （V）	42.57	42.57	42.57	42.57
charging voltage （V）	53.25	53.25	53.25	53.25
Recommended charge/discharge current (A)	50	100	140	157
Maximum charge/discharge current (A)	100 (3 seconds)	200 (3 seconds)	200 (3 seconds)	200 (3 seconds)
operation requirement
working temperature （℃）	0-40℃
storage temperature （℃）	-20-70℃
humidity	15%-80%
system parameter
Size (Width * Depth * Height) mm	482*463*178	482*809*178	437*875*239	437*875*239
weight （Kg）	46	90	96	110
Certificate CE/UN38.3/MSDS/IEC                                     Certificate CE/UN38.3/MSDS/IEC

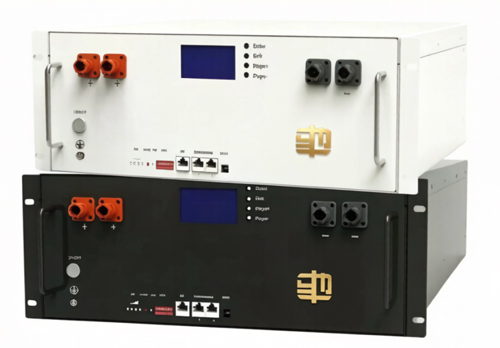

Rack-mounted lithium battery module
product model	51.2V100AH	51.2V200AH	51.2V280AH	51.2V314AH
Battery Characteristics
Nominal Energy (WH)	5120	10240	14336	16076.8
nominal voltage （V）	51.2	51.2	51.2	51.2
capacity （AH）	100	200	280	314
effective energy （WH）	4608	9216	12902.4	14469.12
Battery Assembly	100-16S	200-16S	280-16S	314-16S
cycle life	≥4000@25℃		≥6000@25℃
Charging/Discharging Rate	0.5C
cooling-down method	forced air cooling
communication mode	RS485/CAN/Bluetooth (optional)
designed life	Over 10 years
Electrical design redundancy	＞20%
Charging and Discharging Standards
discharge voltage （V）	45.6	45.6	45.6	45.6
charging voltage （V）	56.8	56.8	56.8	56.8
Recommended charge/discharge current (A)	50	100	140	157
Maximum charge/discharge current (A)	100 (3 seconds)	200 (3 seconds)	280 (3 seconds)	314 (3 seconds)
operation requirement
working temperature （℃）	0-40℃
storage temperature （℃）	-20-70℃
humidity	15%-80%
system parameter
Size (Width * Depth * Height) mm	482*463*178	482*809*178	437*875*239	437*875*239
weight （Kg）	48.2	95	108	110
Certificate CE/UN38.3/MSDS/IEC                                     Certificate CE/UN38.3/MSDS/IEC
