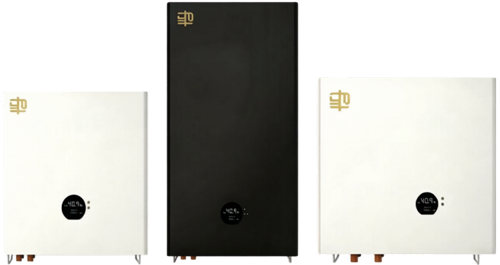

Wall-Mounted Li-ion Battery Module

Highlights of Wall-Mounted Li-ion Battery Module

• Space-saving wall-hung minimalist structure

• Matches rooftop PV for self-consumption upgrade

• Instant backup once utility power cuts off

• Smart BMS balances each cell uniformly

• Low noise for indoor household installation

• Plug-and-play for quick field commissioning

Specification of Wall-Mounted Li-ion Battery Module

Wall-mounted Lithium Battery Module
product model	51.2V100AH	51.2V200AH	51.2V280AH	51.2V314AH
Battery Characteristics
Nominal Energy (WH)	5120	10240	14336	16076.8
nominal voltage （V）	51.2	51.2	51.2	51.2
capacity （AH）	100	200	280	314
effective energy （WH）	4608	9216	12902.4	14469.12
Battery Assembly	100-16S	200-16S	280-16S	314-16S
cycle life	≥4000@25℃		≥6000@25℃
Charging/Discharging Rate	0.5C
cooling-down method	forced air cooling
communication mode	RS485/CAN/Bluetooth (optional)
designed life	Over 10 years
Electrical design redundancy	＞20%
Charging and Discharging Standards
discharge voltage （V）	45.6	45.6	45.6	45.6
charging voltage （V）	56.8	56.8	56.8	56.8
Recommended charge/discharge current (A)	50	100	140	157
Maximum charge/discharge current (A)	100 (3 seconds)	200 (3 seconds)	200(3 seconds)	200(3 seconds)
operation requirement
working temperature （℃）	0-40℃
storage temperature （℃）	-20-70℃
humidity	15%-80%
system parameter
Size (Width * Depth * Height) mm	440*206*453	440*206*804	631*266*473	631*266*473
weight （Kg）	52	104	115	115
Certificate CE/UN38.3/MSDS/IEC                                     Certificate CE/UN38.3/MSDS/IEC
