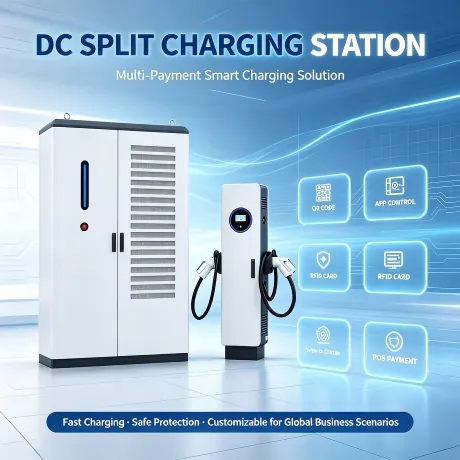

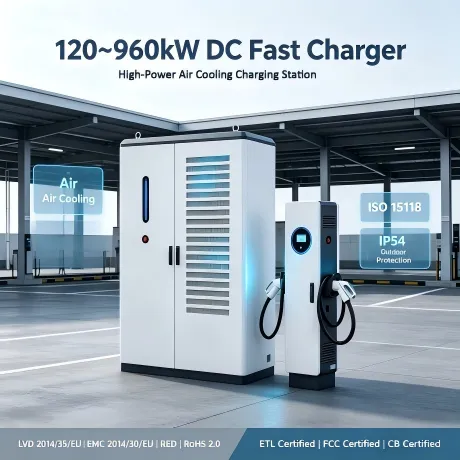

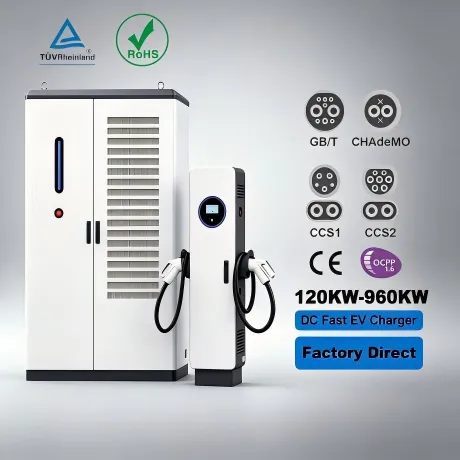

Scalable power from 320kW to 960kW
Separated power cabinet for space flexibility
Ideal for heavy-duty trucks and buses
Multi-terminal simultaneous charging
High system reliability and redundancy
Centralized maintenance and management
| Parameter Name | Parameter Value |
| Rated Power | 960kW |
| Installation Method | Floor-mounted |
| Wiring Method | Bottom-in and Bottom-out |
| Charging Main Stack Dimensions | 1250*815*1985(mm) |
| Input Voltage | AC380V±15% |
| Input Frequency | 45Hz~65Hz |
| Output Voltage Range | 200Vdc-1000Vdc |
| Rated Input Current | 1552A |
| Maximum Output Current | 3200A |
| Maximum Number of Charge Guns Supported | 14 |
| Measurement Accuracy | Class 1 |
| Current Limit Protection Threshold | 1.1 |
| Voltage Regulation Accuracy | ≤±0.5% |
| Current Regulation Accuracy | ≤±1% |
| Ripple Factor | ≤±0.5% |
| Efficiency | ≥95.2% |
| Power Factor | ≥0.99 (Above 50% Load) |
| THD Harmonic Content | ≤5% (Above 50% Load) |
| Human-Machine Interface (HMI) | Tri-color Indicator Light |
| Operating Temperature | -25℃~+55℃ |
| Operating Humidity | 5%~95% Non-condensing |
| Operating Altitude | <2000m |
| Protection Level | IP65 |
| Cooling Method | Air Cooling |
| Charging Terminal Technical Parameters | |
| Parameter Name | Parameter Value |
| Product Model | DCT600B-MC |
| Installation Method | Floor-mounted |
| Charging Terminal Dimensions | 340*151*1400(mm) |
| DC Input Voltage | 200Vdc-1000Vdc |
| AC Input Voltage | 220Vac±15% |
| Input Frequency | 45Hz~65Hz |
| Output Voltage Range | 200Vdc-1000Vdc |
| Number of Charging Guns | 2 |
| Maximum Output Current Per Gun | 250A+600A |
| Measurement Accuracy | Class 1 |
| Human-Machine Interface (HMI) | 7-inch Touch Screen |
| Networking Method | Ethernet/3G/4G |
| Operating Temperature | -25℃~+55℃ |
| Operating Humidity | 5%~95% Non-condensing |
| Operating Altitude | <2000m |
| Protection Level | IP65 |
| Charging Gun Cooling Method | Natural Cooling + Liquid Cooling |
