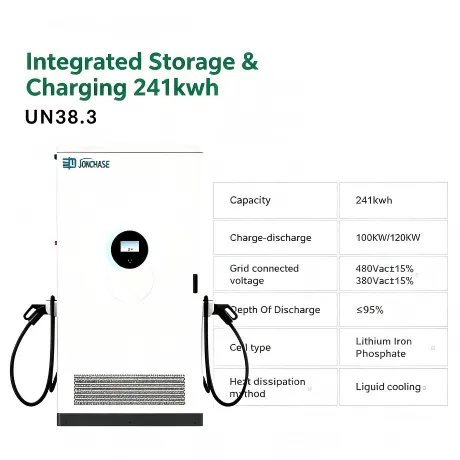

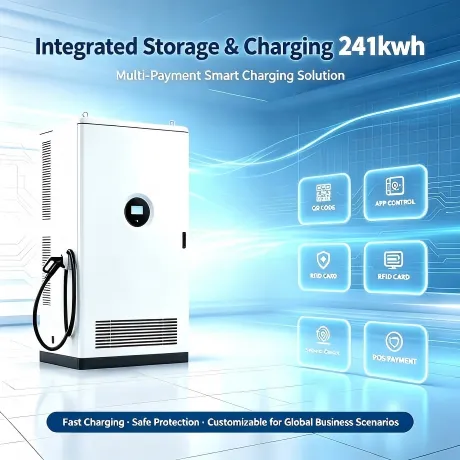

Integrated Storage & Charging 241kwh

All-in-one solution combining battery storage with EV charging capabilities. Features 241kWh integrated capacity, enabling fast charging even during grid peak hours with reduced operational costs.

Highlights of Integrated Storage & Charging 241kwh

Integrated battery and charging in one unit
241kWh storage capacity
Fast charging during grid peak hours
Reduces operational electricity costs
Grid-independent emergency charging support
Optimized energy usage with smart control

Specification of Integrated Storage & Charging 241kwh

Basic Information
Product Name	100kW PV-ESS-Charging Integrated Station
Product Model	GCC215K-120B
Energy Storage Parameters
Rated Capacity	215kWh
Charge-Discharge Rate	0.5C
Battery Voltage Range	672Vdc~864Vdc
Depth of Discharge(DOD)	≥95%
Cycle Life	>6000 cycles
Cell Type	3.2V/280Ah
Pack Voltage	153.6Vdc
Rated Voltage	768Vdc
Cooling Method	Liquid Cooling
Protection Grade	IP55
Charging Pile Parameters
Rated Power	100KW
Output Voltage Range	50Vdc~750Vdc
Output Current Range	0~250A
HMI(Human-Machine Interface)	12.1-inch Android Screen
Charging Modes	Auto Charging,Charging by Set SOC,Charging by Set Amount,Charging by Set Time
Networking Mode	4G/WiFi

Photovoltaic(PV)Parameters
Rated Power	50KW
Input Voltage Range	300Vdc~600Vdc

Wind Power Parameters
Input Current Range	0~160A
Rated Power	30KW
Input Voltage Range	300Vdc~600Vdc
Input Current Range	0~80A

Complete Unit Parameters
Operating Temperature	-10℃~55℃
Operating Humidity	5%~95%Non-condensing
Operating Altitude	<2000m
Protection Grade	IP55
Cooling Method	Air Cooling
Equipment Dimensions	180415002298mm
