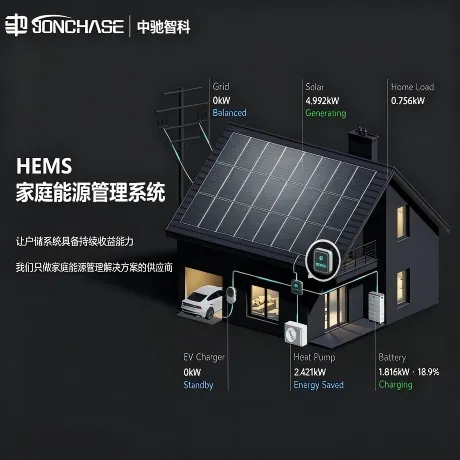

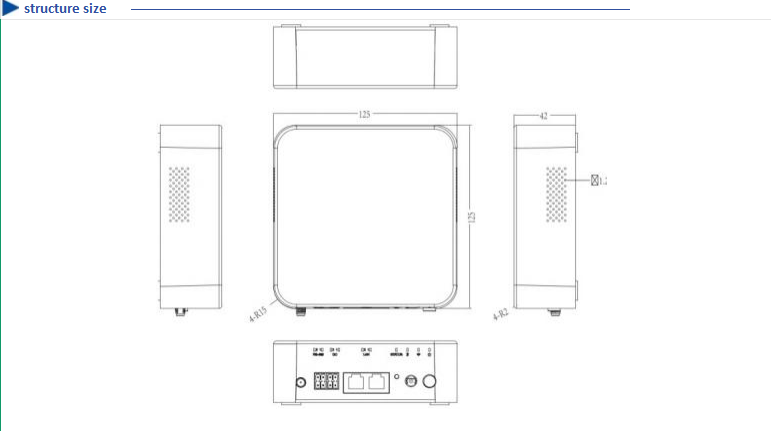

| Specifications | Model | HEMS UB BOX 300 Energy Management Terminal | ||||||||||||||||
| System | Processor | RK3568 Quad-Core ARM Cortex-A55 (MAX 2.0GHz) | ||||||||||||||||
| Internal storage | 2 GB onboard (4 GB available) | |||||||||||||||||
| Memory | EMMC: 32 GB (64 GB available) | |||||||||||||||||
| GPU | ARM G522EE | |||||||||||||||||
| NPU | 1TOPS | |||||||||||||||||
| Operating system | Ubuntu20.04 | |||||||||||||||||
| Peripheral interface | Internet access | 2×RJ45 Realtek 8111H (10/100/1000 Mbps) | ||||||||||||||||
| Port | 2×RS-485 | |||||||||||||||||
| DO | 2×DO | |||||||||||||||||
| Push-button | 1 ×Reset Button、1 ×Power Button | |||||||||||||||||
| Pilot lamp | 2×RS-485_LED、2×DO_LED、2×LAN_LED、1 ×STATUS_LED、 1 ×Power_LED | |||||||||||||||||
| STATUS | Node Path: /sys/class/leds/power/brightness | |||||||||||||||||
| Internal Expansion | Extension Interface | 1 ×miniPCle slot | ||||||||||||||||
| SIM Card | 1 ×Nano SIM Socket for 4G/5G Module | |||||||||||||||||
| Show | 1 ×HDMI:max resolution Up to 4096×2160@30Hz | |||||||||||||||||
| DEBUG | 1 × DEBUG | |||||||||||||||||
| USB | 2×USB2.0 (1×OTG) | |||||||||||||||||
| Push-button | 1 ×Recover Button | |||||||||||||||||
| Source | Power input | DC5～12V 1A | ||||||||||||||||
| Supercapacitor | Supports supercapacitor power loss protection | |||||||||||||||||
| Structure | Pigment | Matte matte black | ||||||||||||||||
| Material quality | PC+ABS hybrid material | |||||||||||||||||
| Way to install | Desk-Mount | |||||||||||||||||
| Size | 125×125×42mm | |||||||||||||||||
| Weight | 0.25Kg | |||||||||||||||||
| Environment | Working temperature | -20～60℃ | ||||||||||||||||
| Storage Temperature | -30～70℃ | |||||||||||||||||
| Humidity | 5% to 95%, non-condensing state | |||||||||||||||||
| Random vibration | 5~500Hz,2Grms (SSD)operation | |||||||||||||||||
| Sinusoidal vibration | 5~500Hz,2G Non-operation | |||||||||||||||||
| DO Interface | |||||||||||||||||||
| Pin Number | Pin Definition | Defined declaration | Pin Number | Pin Definition | Defined declaration | GPIO order number | |||||||||||||
| 1 | D01_+ | Relay output 1 positive | 2 | D01_- | Relay output 1 negative | D01 | |||||||||||||
| 3 | D02_+ | Relay Output 2 Positive | 4 | D02_- | Relay output 2 negative | D02 | |||||||||||||
| Note: The path for the D01 controllable node is /sys/class/leds/do1/brightness; the path for the D02 controllable node is /sys/class/leds/do2/brightness. | |||||||||||||||||||
| RS-485 Interface | |||||||||||||||||||
| Pin Number | Pin Definition | Defined declaration | Pin Number | Pin Definition | Defined declaration | Linux Node | |||||||||||||
| 1 | RS-485_A1 | Serial Port 1 _Positive | 2 | RS-485_B1 | Serial Port 1 _Negative | /dev/ttySO | |||||||||||||
| 3 | RS-485_A2 | Serial Port 2 _Positive | 4 | RS-485_B2 | Serial Port 2 _Negative | /dev/ttyS3 | |||||||||||||
| LAN internet access | |||||||||||||||||||
| Network Port Name | Node Name | IP address | |||||||||||||||||
| LAN1 | eth3 | 192.168.2.100/24 | |||||||||||||||||
| LAN2 | eth0 | 192.168.1.100/24 | |||||||||||||||||
